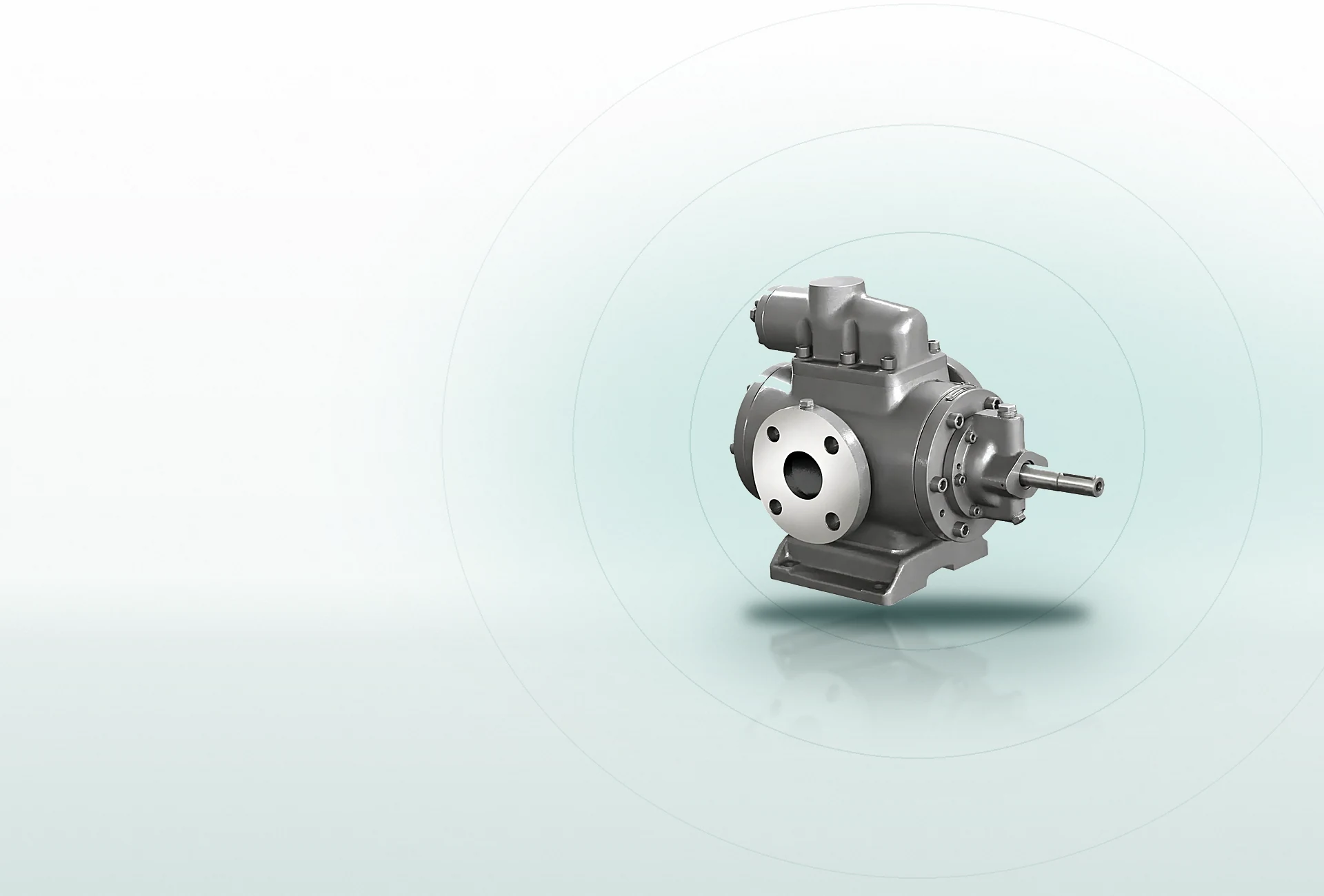

How Does a Triple Screw Pump Work?
A Triple Screw Pump consists of three screws—one power screw and two idler screws—precisely fitted within the finished bores of the pump housing or liner, depending on the pump construction.
The rotating power screw drives the two idler screws through the thin fluid film formed between the screw surfaces.
The power screw does not mechanically drive the idler screws.
The precisely engineered screw profiles create sealed cavities that trap the fluid and continuously carry it from suction to discharge, delivering smooth, quiet and pulsation-free pumping.
Hydraulic forces and the thin lubricating film of the pumped fluid cause the idler screws to rotate with minimal torque, thereby reducing friction and wear.
What Construction Options Are Available for Triple Screw Pumps?
Horizontal Foot Construction
Horizontal Flange Construction
Vertical Construction
API 676 Compliant Triple Screw Pumps
Partial and Full Heat Jacketing
What Are the Key Applications of Triple Screw Pumps?
Lube Oil Applications
Bearing and Gearbox Lubrication
Triple screw pumps are used to lubricate Main turbine, auxiliary turbines, turbine driven boiler feed pump in power plant.
Industrial Turbomachinery
Bearing and Gearbox lubrication of Induced Draft (ID), Forced Draft (FD) fans, Air Preheaters, pulverisers and rolling mills used in cement, paper, Sugar, Steel and sponge iron plants.
Marine Applications
Lubrication Oil supply to main engine bearings and Cylinder Liners in various type of ships.
Fuel Oil Applications
Thermal Power Plant Boiler Packages
Fuel oil transfer and supply for boiler fuel supply in Independent and Captive Power Plants.
Industrial Burners
Fuel oil supply to burners used in industrial furnaces and kilns.
Oil-Fired Power Plants
Fuel oil transfer and supply for fuel handling and firing systems.
Marine Applications
Fuel oil transfer and supply systems for marine Engines.
Hydraulic Oil Applications
Industrial Hydraulic Systems
Hydraulic systems for extrusion, forging, forming, and steel industry applications.
Hydraulic Elevators
Reliable hydraulic oil circulation and pressure supply in industrial and heavy-duty hydraulic elevators.
Hydro Power Plant Governing Systems
Hydraulic oil supply for governing and control systems in hydro power plants.
Turbine & Turbine Driven Pump Rotor Lifting
Hydraulic oil supply for rotor lifting systems of turbines and turbine-driven pumps.
Other Applications
Seal Oil Systems
Triple screw pumps are used to circulate seal oil in sealing systems of generator to avoid seal leakages.
Machine Tool Industry
Specially Designed Triple screw pumps will pump low viscosity coolants for high pressure requirement.
Speciality Lubricants Industry
Used to transfer various clean and lubricating raw material, additives and end product.
Not sure which pump fits your process?
Share your fluid and duty. Our engineers will recommend the right pump.
What Are the Key Benefits of Triple Screw Pumps?
Excellent Suction Performance
Low maintenance cost due to Low friction and wear
Suitable for High pressure application
Compact and robust design
Smooth, Low noise and Pulsation
